Harnessing Electrocoagulation (EC) For Produced Water Treatment

In the oil and gas sector, handling produced water—the primary waste stream from drilling and extraction—represents a major operational hurdle while also offering pathways for technological advancement. As worldwide output of this water increases dramatically, implementing reliable treatment methods is essential for meeting standards, optimizing costs, and preserving valuable resources. For instance, in the U.S. Permian Basin, daily production is producing approximately 924 million gallons (about 3,500,000 cubic meters) per day in 2025, underscoring the magnitude of the problem. This in-depth resource examines the fundamentals of treating produced water through electrocoagulation (EC), highlighting its advantages, limitations, and potential to transform how the industry approaches wastewater handling.

Advancements in produced water treatment have accelerated due to growing concerns over water shortages and a broader emphasis on efficient practices. EC emerges as a standout electrochemical approach that clears out impurities with limited chemical inputs. This piece provides a thorough exploration of EC’s underlying principles, practical uses, and emerging prospects, equipping operators, technicians, and decision-makers with practical knowledge to enhance their workflows.

What is Produced Water in the Oil and Gas Industry?

Produced water refers to the liquid that surfaces during hydrocarbon extraction, combining native underground fluids with any additives from processes such as hydraulic fracturing. This mixture frequently harbors a diverse array of pollutants, positioning it as one of the toughest effluents to process in the field.

On a global scale, the oil and gas industry outputs vast quantities of produced water. In the United States, major areas like the Permian, Eagle Ford, Appalachia, and Bakken contribute the bulk, with overall land-based amounts on an upward trajectory. In the Permian specifically, the proportion of water to oil is increasing, with estimates suggesting more than 1.092 billion gallons daily (around 4,134,000 cubic meters) by 2030. Internationally, the water-to-hydrocarbon balance is shifting higher, intensifying needs for effective handling and purification.

Typical impurities in produced water differ based on location and techniques but generally encompass:

• Hydrocarbons and Organic Materials: Including dispersed oils, fats, and volatile organics like benzene, toluene, ethylbenzene, and xylenes (BTEX), which elevate levels of chemical and biochemical oxygen demand. Concentrations might span from 10 to over 500 mg/L in raw forms.
• Heavy Metals and Inorganic Substances: Such as arsenic, barium, cadmium, chromium, lead, and mercury, sometimes surpassing safe thresholds. Barium, for example, can hit 1,000 mg/L in certain deposits. Additional elements include mineral salts in solution, organic acids and paraffins, metallic inorganics, residual byproducts, minor heavy elements, and radioactive substances from natural sources Produced water contaminants.
• Total Suspended Solids (TSS) and Turbidity: Comprising tiny particles, sediments, and dispersed colloids that obscure the water and complicate further steps, often ranging from 100 to 1,000 mg/L in TSS.
• Elevated Salinity and Dissolved Solids: With total dissolved solids (TDS) potentially topping 200,000 mg/L, dominated by chlorides, sulfates, and sodium. This extreme salt content disrupts biological purification and accelerates equipment wear. In the Permian, salinity often exceeds seawater by a factor of three or more Permian salinity levels. For each unit of oil or gas extracted, up to 10 units of this polluted water may emerge Water-to-oil ratio.

Inefficient strategies can inflate disposal expenses, potentially consuming up to 10% of total operational budgets. Yet, through advanced purification, it can be repurposed for re-injection, fracking support, or alternative applications like agriculture in dry zones, fostering a more circular approach to resource use.

The Challenges of Treating Produced Water

Purifying produced water involves navigating a web of technical, financial, and oversight difficulties. Its makeup fluctuates widely due to geological factors, extraction approaches, and site-specific activities, necessitating adaptable and durable systems. For example, excessive salt hinders biological methods by curbing microbial function, and stable oil emulsions can clog filtration barriers.

In places like the Permian, escalating volumes overwhelm injection sites, raising pressures and operational costs. Across the world, the sector is urged to cut back on fresh water intake, given its substantial role in industrial consumption.

Legal requirements complicate matters further. Under U.S. laws like the Clean Water Act and Safe Drinking Water Act, discharge criteria are rigorous, mandating TSS under 30 mg/L and oils/greases below 15 mg/L for surface releases. Globally, entities such as the International Maritime Organization enforce even stricter guidelines for marine operations. The EPA encourages repurposing produced water to ease disposal burdens and advance energy self-reliance, with plans to revise guidelines for treatment and recycling EPA reuse promotion. In Texas, environmental authorities are reviewing multiple permits for releasing cleaned produced water into waterways, bolstered by legislation that protects firms from legal claims tied to post-reuse issues, enhancing operational predictability Texas permit evaluations. New Mexico’s Produced Water Research Consortium is advancing cost-effective purification techniques, including separation innovations and assessments of effects on water-based organisms and vegetation New Mexico research consortium. Meanwhile, New Mexico has enacted a temporary five-year restriction on discharging produced water to ground or surface sources, constraining recycling options New Mexico discharge rule.

From a cost perspective, conventional techniques like chemical flocculation, settling, and reverse osmosis demand heavy upfront investments and produce leftover wastes. Reverse osmosis struggles with produced water’s intense salinity and TDS, which often exceed membrane tolerances (around 45,000 mg/L), causing quick blockages, elevated energy use, and steep expenses. Purification demands significant energy, especially for desalting, with per-barrel costs starting at $2 versus $1 for injection, and climbing to $10 in some Texas scenarios Treatment cost estimates. Transportation for hauling water to disposal sites can often exceed the disposal fee itself, adding to overall expenses. The international market for produced water solutions is forecasted to expand from USD 9.53 billion in 2025 to USD 16.33 billion by 2032, signaling a pressing demand for affordable, breakthrough methods. Other issues include adapting to isolated locations, power demands, and residue handling, which can boost running costs by 20-50%.

How EC Revolutionizes Produced Water Treatment

EC employs electricity to disrupt and cluster impurities in water. Through electrodes that dissolve under current—typically aluminum or iron—metallic ions are liberated, creating agents that capture and bind contaminants for straightforward extraction. For an in-depth overview of electrocoagulation’s mechanics, refer to this resource.

The Electrocoagulation Process Step-by-Step

1. Electrode Release: Electric flow triggers oxidation at the anode, introducing ions such as Al³⁺ or Fe²⁺/Fe³⁺ into the mix. These then form hydroxides that serve as binding agents.
2. Neutralization and Binding: The hydroxides offset charges on floating particles, colloids, and oil droplets, encouraging them to clump together. This phase addresses a wide variety of stubborn pollutants.
3. Clumping and Bubble Formation: Aggregates enlarge through interactions, supported by cathode-generated hydrogen bubbles that aid in lifting them. Clumping usually finishes rapidly, boosting overall separation.
4. Removal and Purification: Formed clusters are separated by settling, air-assisted flotation, or straining. The output is clarified water with diminished TDS and pollutants.

Methods like alternating polarity help prevent electrode buildup by reversing flow periodically, prolonging usability and output. Field trials have shown 95-99% clearance of TSS, turbidity, and oils, alongside COD drops over 80%.

Chemistry Behind Electrocoagulation

Anodic reactions dissolve metal: For aluminum, it’s Al → Al³⁺ + 3e⁻. These ions interact with water to produce Al(OH)₃, which traps impurities. Cathodic actions yield H₂ and OH⁻, helping balance pH. Effectiveness peaks at pH 6-8, requiring adjustments for different scenarios.

Benefits of EC Treatment for Oil and Gas Produced Water

Electrocoagulation delivers a range of perks tailored to oil and gas needs:

• Exceptional Pollutant Clearance: It outperforms in removing persistent contaminants, reaching 99% for oils, metals, and particulates. In salty conditions, it can indirectly lower chlorides by 30-50%.
• Efficient Approach: Limiting chemical use cuts down on additional inputs and residue amounts—by 50-70% versus chemical alternatives. This reduces disposal burdens and aids in achieving no-discharge targets. The DOE is prioritizing affordable technologies for recycling produced water in applications like reservoir stimulation, field maintenance, fire suppression, energy production, equipment cleaning, and watering non-food plants DOE reuse technologies.
• Affordability and Speed: With energy needs of 0.5-5 kWh/m³ and fast processing, EC is budget-friendly. Costs can drop 20-40% from competitors, with rapid returns via recycling. It’s increasingly viable against injection, especially with transportation hauling costs often exceeding disposal fees Cost-competitive treatment.
• Portable and Scalable Setup: EC units are modular and transportable, suitable for distant sites. They manage flows up to 250 gallons per minute (0.946 cubic meters per minute) in compact spaces.
• Flexibility for Repurposing: Cleaned water complies with criteria for re-injection, fracking, or other uses, slashing fresh water needs by up to 90%. Options include energy generation, cooling for industries, data facilities, and non-edible crop hydration to combat dryness in states like Texas and New Mexico Beneficial reuse options. Reusing for additional fracking requires milder treatment and lessens fresh water reliance, though adoption data remains sparse Fracking water recycling.

In areas reliant on fracking, EC’s adoption supports the U.S. water purification market’s projected 6.1% annual growth through 2033.

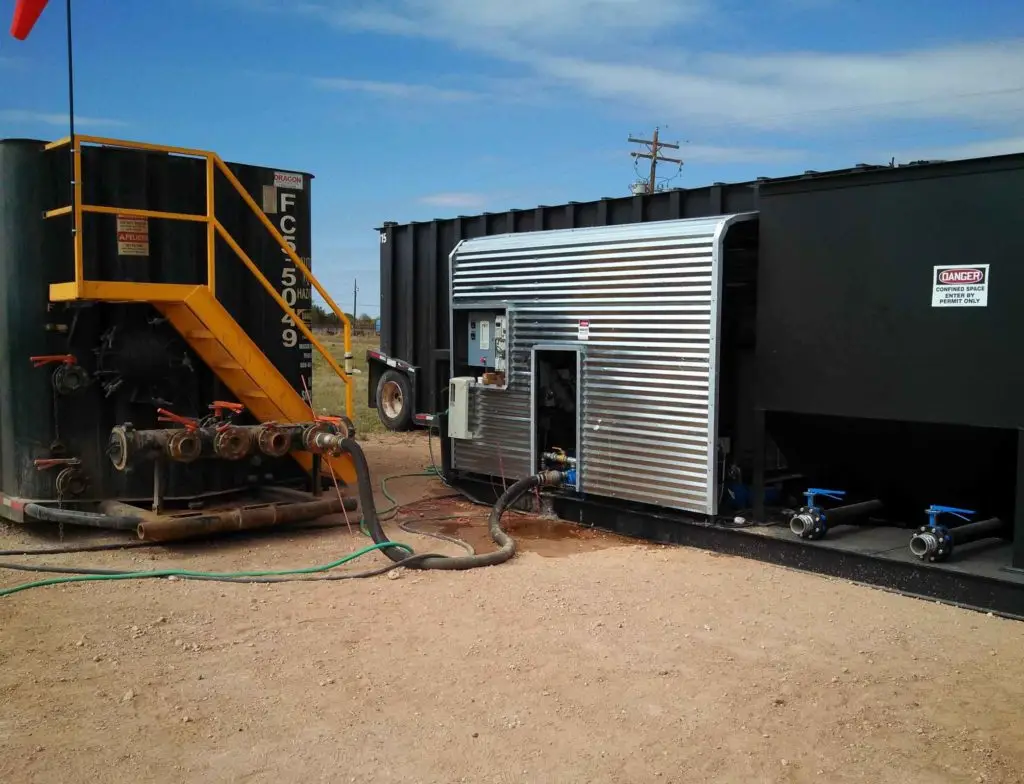

Key Features of GlobalSep’s EC Systems

GlobalSep’s EC systems are designed to handle the demands of produced water treatment, particularly in high-conductivity environments. Their reactors feature large electrode areas and specialized power supplies, enabling effective ion migration and coagulation even in hypersaline conditions up to 350 mS/cm. This addresses common challenges where standard systems may underperform due to inadequate electrode sizing.

Additionally, these systems support high flow rates with sealed reactors and expansive electrode capacities, processing up to 140 gallons per minute per modular skid (0.53 cubic meters per minute), with two skids typically treating 250 gallons per minute. Features like steel electrodes achieve high removal rates for hydrocarbons, metals, and TSS, while reducing chlorides by 30-50%. Quick flocculation, minimal chemical use, and easy maintenance make them suitable for field operations, as demonstrated in Texas and New Mexico projects where they enabled efficient reuse.

Real-World Success Stories and Case Studies

EC treatment has proven effective across oil and gas contexts. In a Permian setup, EC processed water exceeding 100,000 mg/L TDS, yielding 95% TSS clearance and 90% COD reduction, supporting re-injection without buildup problems.

An offshore trial used EC for metal and organic removal, with over 90% success and energy at 1-2 kWh/m³. For frack returns, EC cut turbidity by 95% and TSS by 90%, enabling reuse in follow-up activities.

Such cases demonstrate EC’s versatility across varying water profiles.

Electrocoagulation vs. Other Treatment Methods

EC stands out for its capacity to address intricate mixtures with little upfront preparation.

Challenges and Technical Considerations

While powerful, EC encounters barriers:

• Electrode Buildup and Inactivity: Deposits may layer electrodes, dropping output. Remedies involve polarity switches and routine maintenance. Automated cleaning cycles can also be added for steady operation with low effort.
• Power and Running Expenses: Though modest, fine-tuning via current levels like 28 A/ft² (301 A/m²) sustains performance.
• Expansion and Customization: Differing water traits call for testing. Combined setups can improve handling of complex cases.
• Residue Disposal: Volumes are lower than peers, but management persists; residues can often be reused as safe fill.

Innovations like EC merged with forward osmosis-membrane distillation boost capabilities.

Integrating EC with Other Technologies

To achieve peak performance, EC often pairs with complementary methods. For example, combining with ultrafiltration or microfiltration cuts membrane wear by 2-3 times, irrespective of TDS. For RO or NF, which need reduced TDS, EC prep is key. It also works with flotation or plate settlers for better cluster separation. Ion exchange follows EC for precise ion targeting. EC with oxidation processes heightens organic breakdown, exceeding 95% COD in difficult waters. Further links include centrifugal pre-filters for solids and electrodialysis for salt aid. In desalting, EC before RO trims energy by 20-30%. These blends position EC as a core element in layered systems, fitting marine or land-based sites.

Economic Benefits of EC Implementation

EC yields clear financial gains by decreasing chemical dependence and residue disposal. On-site processing and recycling cut hauling and fresh water costs, especially since transportation for water disposal can exceed the injection fee itself. Efficiencies like rapid cycles and small footprints lower overall expenditures versus traditional paths. For large-scale sites, water repurposing drives savings and faster investment recovery, establishing EC as a sound choice for enduring water handling.

Regulatory Compliance and Sustainability Advantages

EC aids in meeting standards like the Clean Water Act, often producing effluents under 10 mg/L for oils/greases. It aligns with EPA recycling efforts, shrinking the sector’s water use. Perks include reduced transport needs, advancing operational aims.

Best Practices for EC Implementation

To leverage EC fully:

• Analyze water thoroughly to pick electrodes and settings.
• Employ automated monitoring for current and pH.
• Add dewatering for residue efficiency.
• Schedule upkeep to avoid halts.

Initial trials ensure high reliability, targeting 90-95% operational time in deployments.

Frequently Asked Questions (FAQs)

What contaminants does EC remove from produced water?

EC tackles a broad spectrum of impurities in oil and gas produced water. It effectively breaks down emulsions to clear up to 99% of hydrocarbons like oils and BTEX. Metals including arsenic, barium, and lead are precipitated as hydroxides, typically at 90-95% rates. TSS and turbidity drop by 95% or more through clumping and uplift. COD can fall over 80%, and in tuned systems, salinity elements like chlorides reduce by 30-50%. This makes it ideal for salty waters where others struggle, ensuring outputs suit discharge or reuse rules. In lab-scale continuous reactors with aluminum electrodes on simulated produced water, EC lowers turbidity and organic carbon effectively Synthetic PW reduction. Compared to chemical methods, EC boosts oil/grease clearance to 97.4% and COD to 99.1% O&G and COD removal. Experimental work shows 95.85% COD at pH 7.3 Optimal pH COD reduction. For actual gas-field water in Qatar, iron/aluminum EC cut COD by 33%, TOC by 60%, oils/greases by 99.6%, turbidity by 98%, and BTEX largely over 99% Qatar PW treatment results.

Is electrocoagulation cost-effective for oil and gas produced water treatment?

Indeed, EC proves economical against chemical or membrane options. It slashes additive expenses by 70-80% with low chemical needs and uses 0.5-5 kWh per cubic meter. Less residue—half of chemical coagulation’s—lowers disposal. Recycling for re-injection or fracking saves on fresh water, yielding big annual gains. Setup costs vary, but returns occur in 1-3 years via efficiencies. In regulated areas like the Permian, on-site avoids transport fees, which can exceed disposal costs, bolstering viability. Desalting is energy-demanding, with $2+ per barrel versus $1 for injection, up to $10 in Texas Energy-intensive costs.

How fast is the treatment process with EC?

EC operates swiftly, suiting high-volume oil and gas. Binding happens 1-2 minutes post-reactor, with full cycles—separation included—in 15-30 minutes batch-wise or continuously at 250 gallons per minute (0.946 cubic meters per minute). Electrical ion release enables instant action, outpacing chemical mixing. In flow systems for fields, retention is 5-10 minutes, handling thousands of barrels daily. Adjustments to current and setup optimize pace without quality loss, minimizing stops in active sites.

Can EC handle high-salinity produced water?

EC holds promise for high-TDS produced water over 200,000 ppm, but standard units often falter. Large-electrode systems may lack power for conductive waters’ low resistance, while small ones need multiples for scale, raising costs and space. Advanced designs like GlobalSep’s, with ample electrodes and tailored power, use conductivity to improve ion flow and binding, outperforming biological or some membranes in salt-heavy spots. Steel or aluminum choices target ions, with indirect chloride cuts. Research indicates 90% TSS and 80% COD in hypersaline, though more electrode surface area may be needed for more reaction time. electrode fouling is managed via automatic polarity reversal. Robust systems like GlobalSep’s make EC favored for marine and shale with salinity dominance High-salinity EC lessons.

What are the environmental benefits of using EC?

EC provides key advantages for oil and gas operations. Skipping harsh chemicals avoids extra inputs and shrinks residue by 50-70%, often non-toxic for simpler handling or reuse under TCLP standards. It boosts recycling, curbing fresh water and injection needs. Low energy cuts operational costs, with renewable options for efficiency. In produced water, it supports looped systems, saving resources in arid spots and meeting eco-targets.

Looking Ahead: The Future of Produced Water Treatment

With the oil and gas field evolving, EC is primed for growth. 2024-2025 developments, like AI-enhanced units and blended tech, forecast superior results. At 5-7% annual market rise, EC will propel efficient methods, easing water strains. Leaders should pursue trials to tap this fully.

Prepared to advance your produced water handling? Reach out to GlobalSep for customized EC options and streamlined performance.
